PULLER SET - COIL AND BEARING
PART NO. 384414

Use these pullers to safely remove the forward bearing race or coil from electric shift gear-cases listed below. Complete, step by step instructions included with all puller assemblies.

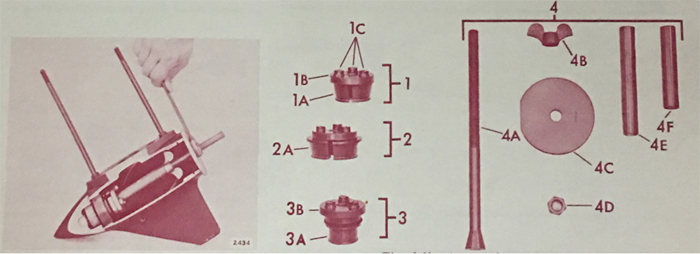

These parts shown below are also available in detail
as shown below:

ITEM PART NO. DESCRIPTION
1 379829 Race Puller - 40 HP thru 1970
*2 379649 Race Puller -  (60 thru 90 HP thru 1968)
*3 379784 Coil Puller - (all 40 HP 1970, 75 HP thru 1968)
4 379843 Shaft and Sleeve Kit - Use with 3 pullers listed above

*Also used on Stern Drive.

The following replacement parts are available
for service:

ITEM PART NO. DESCRIPTION
1A 309887  Jaw - (3 required)
1B 310948  Puller Head (used on all 3 pullers)
1C 309876  Shoulder Screw (used on all 3 pullers)
2A 310683  Jaw (3 required)
3A 310949  Jaw (3 required)
3B 202591  O-Ring (standard part - order from your parts distributor)
4A 311006  Shaft
4B 311004  Wing Nut
4C 311005  Pressing Plate
4D 308332  Pressing Nut
4E 310934  Sleeve - 5"
4F 310682  Sleeve - 3-1/2"
