Driveshaft Shimming Tools

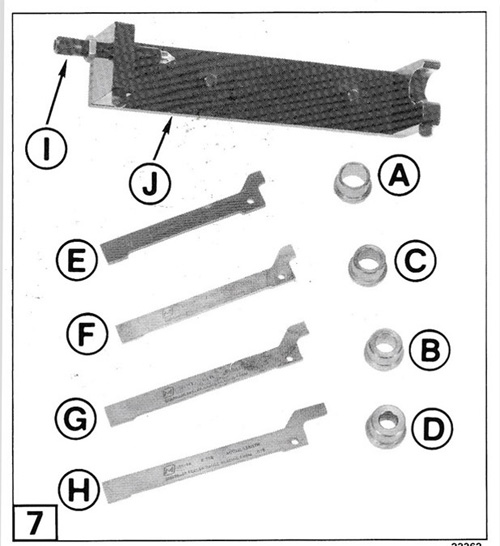

393185 Driveshaft Shimming Tool
Shims driveshafts — 40 Thru-Hub thru V8
(A) 328360 Collar
(B) 328361 Collar
(C) 341440 Collar — (replaces 328362)
(D) 328363 Collar
(E) 328364 Gauge Bar
(F) 328365 Gauge Bar
(G) 328366 Gauge Bar
(H) 328367 Gauge Bar
(I) 393279 Screw
(J) N/A Frame (Not available separately)
Stern Drive Lower Gearcase
393185 Universal Driveshaft Shimming Tool
Accurately positions the pinion. Replaces 315767 Shim Gauge and 321520 Pinion Bearing Installer. All components except the frame are available separately.
Refer to manual or tool catalog for components not listed here.
328360 Collar — All models
328366 Gauge Bar — 2.5 and 3.0 Litre
328367 Gauge Bar — 3.8, 4.3, 5.0, and 5.7 Litre
Model
Style |
Year |
Collar |
Gauge Bar |
50 |
1972-74 |
328361 |
328366 |
2-Cylinder
Recreation * |
thru 1988 |
328361 |
328365 |
40, 48, 50 |
1989 and newer |
334985 |
334984 |
45/55 |
1979 and newer |
328363 |
328366 |
3-Cylinder
Long Shaft |
1972 and newer |
328363 |
328366 |
3-Cylinder
Short Shaft |
1975-1986 |
328363 |
328365 |
V4 60° |
1995 and newer |
341440 |
328367 |
V4 90° |
1969 and newer |
341440 |
328366 |
V6 |
1976 and newer |
341440 |
328367 |
V8 |
1985 and newer |
341440 |
330224 |
|
|
|
|
*If reusing origional gears and gearcase has no "S" or "M" stamped in trim tab pocket, use gauge bar 328364 (1979-1985)
