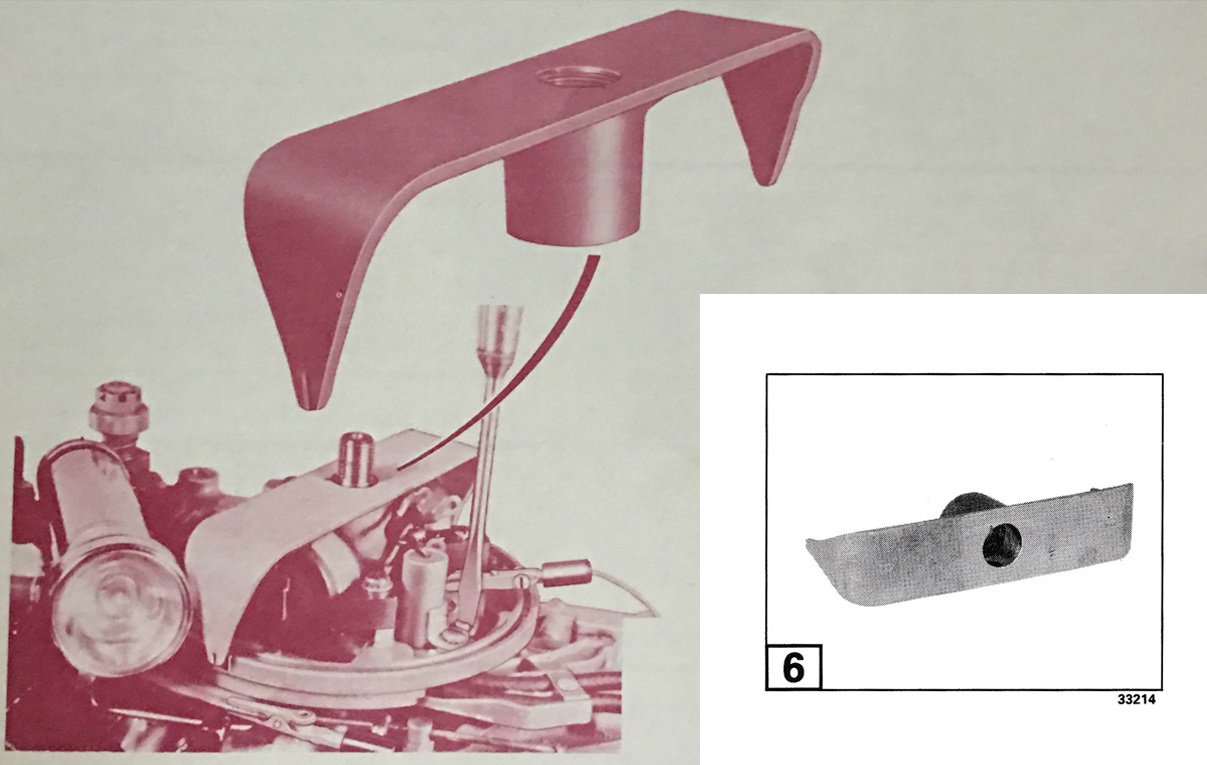

FIXTURE SET — TIMING
PART NO. 386701

OLD VERSION:

For all two cylinder outboards (except with C.D. Ignition). Use with test light or meter to achieve proper firing of cylinders for peek performance. Detailed instructions for use packaged with every tool. Fixtures also available individually as shown below:

PART NO. 383603
For all 3 and 4 HP models

PART NO. 383602
For all 5 thru 20 HP and 1969 and later 25
HP models

PART NO. 386636
For 1974 9.9 and 15 HP models

PART NO. 383601
For all 25 thru 40 HP models ~ thru 1961

PART NO. 378966
For all 23. 33 and 40 HP mod. - 1962
thru 1973.

PART NO. 386635
For 1974 40 HP models.

NEW VERSION

304666 - 3 and 4 models, 1969 thru 1986
304667 - 5 thru 20 models & 25, 1969 thru 1984 (not 99/15)
319889 - 9.9/15 models (low tension), 1974 thru 1986
308018 — 22 thru 40 models, thru 1961 (magneto)
309173 — 28, 33 and 40 models, 1962 thru 1973 (magneto)
319888 — 40 models, 1974 thru 1986 (low tension)
