1996 (ED) Outboard Essential Service Tool Kit,
P/N 507177

This kit includes outboard service tools for the 1996 model models. A brief description of each tool application is listed in this sheet. The 1996 OMC Service Manuals review the use of each tool.

This kit also includes the necessary decals, hooks, and screws to mount these new tools on your OMC outboard tool display panels.

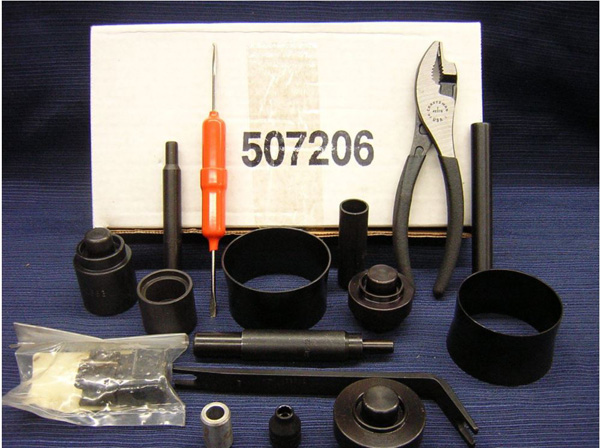

SERVICE TOOLS INCLUDED IN THIS KIT:

(A) Propeller Shaft Seal, Installer P/N 342663
Installs extended lip propeller shaft seal on 9.9/15 2-stroke and 4-stroke models.

(B) Propeller Shaft/Driveshaft Seal Installer, P/N 342666
Required for 40, 48, and 50 2-cylinder models to install extended lip propeller shaft and driveshaft seals.

(C) Propeller Shaft/Driveshaft Seal Installer, P/N 342665
Used to install extended-lip propeller shaft and driveshaft seals on 50, 60, and 70 3-cylinder and V4 models.

(D) Lower Crankshaft & Bearing Installer, P/N 342222
Required when installing O-ring sleeve and lower crankshaft bearing on 25/35 3-cylinder models.

(E) Bearing Alignment Tool, P/N 342217
Required to align bearing to wrist pin during assembly on 25/35 3-cylinder models.

(F) Connecting Rod Socket, P/N 342664
Required to torque to connecting rod cap screws on 25/35 3-cylinder models.

(G) Ring Compressor, P/N 342218
For standard piston and ring installation on 25 3-cylinder.

(H) Ring Compressor, P/N 342220
For standard piston and ring installation on 35 3-cylinder.

(I) Retaining Ring Installer, P/N 342658
Required to install retaining ring for shift detent ball and spring assembly on 25/35 3-cylinder models.

(J) Wrist Pin Retainer Installer, P/N 342223
Required to install wrist pin retainers into piston on 25/35 3-cylinder models.

(K) Wrist Pin Remover, P/N 342657
Removes wrist pin on 9.9/15 4-stroke and 25/35 3-cylinder models.

(L) Connecting Rod Alignment Jaw Kit, P/N 437273
Required for correct connecting rod cap alignment on 25/35 3-cylinder models. Used in conjunction with Rod Cap Alignment Fixture, P/N 396749.

(M) Linkage Ball Socket Remover, P/N 342226
Double-ended tool to remove ball socket and linkage.

(N) Linkage Ball Socket Installer, P/N 342225
Installs ball socket and linkage.

(O) Connector Removal Tool, P/N 342667
Service tool for Deutsch connectors.

Decal, Hook, & Screw Kit, P/N 507206 (Not Shown)
Provides the decals, hooks, and screws for the tools provided in this tool package.
