Torque Shaft — 50 HP — 308112

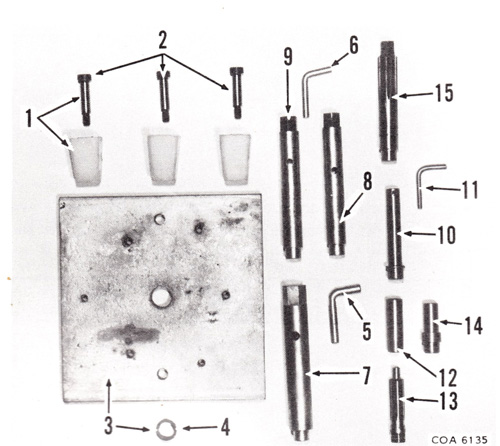

PROPELLER TORQUE FIXTURE

For 4.5 thru 90 models with and without thru hub exhaust. Used to detect slippage between propeller and hub.

All components are available separately.

REF.
NO.		 PART
NO.		 QUANTITY DESCRIPTION MODELS
1 392652 1 (includes 3 each) Propeller Stop & Bolt Assembly All
2 327629 1 (includes 3 each) Shoulder Bolt All
3 392432 1 Base & Bushing Assembly All
4 327788 1 Bushing All
5 308109 1 Lock Pin *50
6 308110 1 Lock Pin *40 & 75
7 308112 1 Torque Shaft *50
8 308113 1 Torque Shaft *28 Thru 40
9 308114 1 Torque Shaft *60 Thru 90
10 327631 1 Torque Shaft *4.5 Thru 7.5
11 327632 1 Lock Pin *4.5 Thru 7.5
12 327635 1 Stub Arbor 9.9 & 15
13 327633 1 Spline Adapter 9.9, 15 & *25
14 327634 1 Stub Arbor *25
15 327630 1 Torque Shaft 35
*Propeller without thru-hub exhaust.
