INSTALLER - UPPER MAIN SEAL

INSTALLER - UPPER MAIN SEAL

PART NO. 314901
For 5. 6, 9-1/2 HP engines

PART NO. 319872
For 1974-77 9.9 and 15 HP engines

PART NO. 304722
For 15 HP thru 40 HP engines
(except 1962 and later 28. 33 and 40 HP; 1974 and later 15 HP;
1976 and later 35 HP and 1977 25 HP)

PART NO. 309914
For 28 and 40 HP engines - 1962 thru 1973
For 33 HP engines - 1965 thru 1970

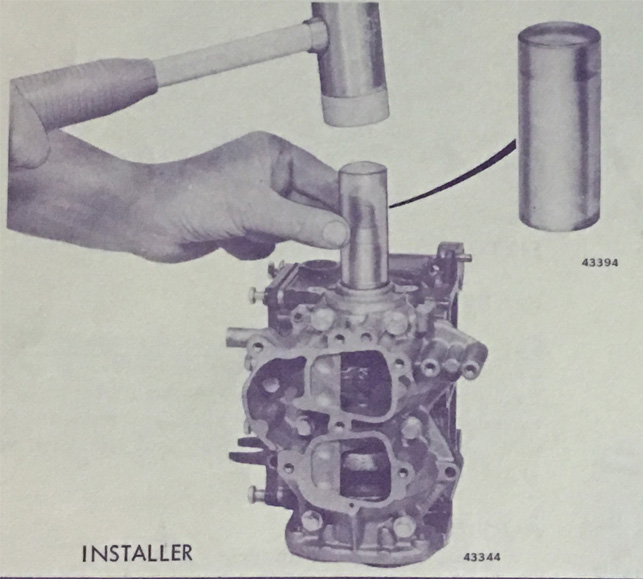

These are companion tools to 382944, 377067
and 379239 seal pullers. These tools are used
when installing the upper main bearing seal
over the crankshaft. Seats the oil seal to cor-
rect depth in bearing shell or cylinder block.
