Installer - Pinion Bearing

Pinion Bearing Installers
321518 - 1977 and older V6

INSTALLER - PINION BEARING
PART NO. 321518

For 1976-77 175 and 200 HP.

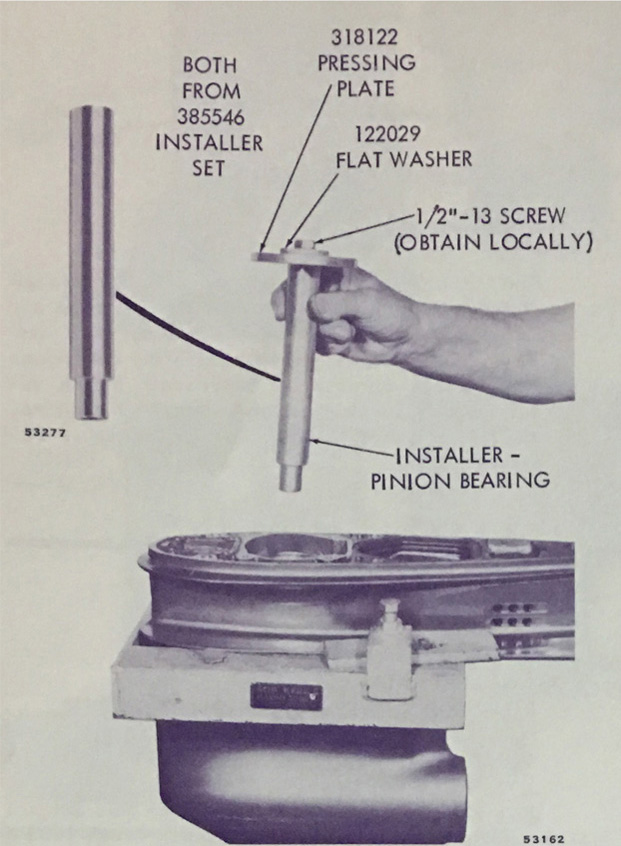

These installers are used with components of in-line tool 385546 to press the pinion bearing into the gearcase. Accurate bearing placement is critical if the driveshaft and pinion are to be properly supported. Using this tool insures that the bearing is installed to the correct depth without danger of cocking or damaging the bearing case. Soft face hammer recommended to prevent distortion of screw head.
