Fixture - Floor Mount Drilling

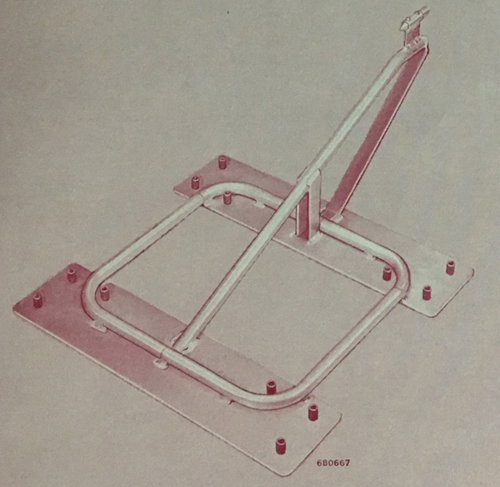

FIXTURE - FLOOR MOUNT DRILLING
PART NO. 382952
For 80 and 90 HP

PART NO. 381373
For 120 thru 235 HP (except 1972 and later 100, 120, 140 and 165 HP; 1973 and later 225 and 245)

An OEM tool which accurately locates the stern drive engine mounting holes after transom opening is cut. Simply drill thru bushings using a step drill. Fixture is easy to handle, made of aluminum with hardened drill bushings for extended life. Locating bullet is adjustable for a wide range of transom angles. Fixture 381373 includes a step drill which is available separately.

DRILL, STOP AND SETSCREW ASSEMBLY.
PART NO. 381374

Used with Floor Mount Drilling Fixtures for accurately drilling stern drive engine mounting holes.
