Gauge - Shim

GAUGE - SHIM
PART NO. 909078

Positions upper bearing housing in upper gear housing - all models except 3.8 Liter

For 185 thru 245 HP - late 1967-76
(except 235 HP low profile)

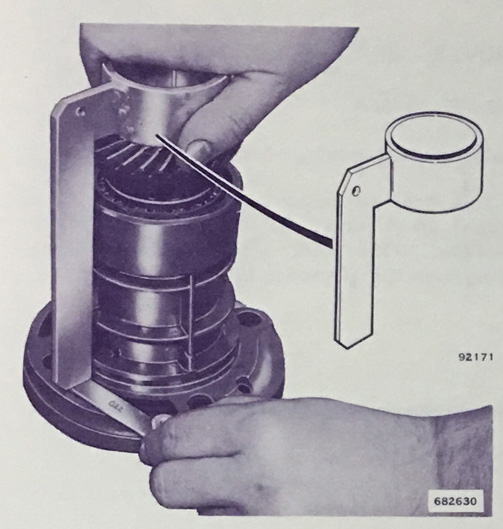

For all stern drive models listed. A close tolerance measurement must be maintained between the flat on the top of the pinion gear and the shoulder on the bearing housing. This tool quickly determines the correct shim needed to maintain this tolerance. A properly shimmed housing, together with an accurately shimmed ball gear shaft, guarantees correct engagement of the gears.
