PULLER SET - COIL AND BEARING
PART NO. 384414
Use these pullers to safely remove the forward bearing race or coil from electric shift gear-cases listed below. Complete, step by step instructions included with all puller assemblies.

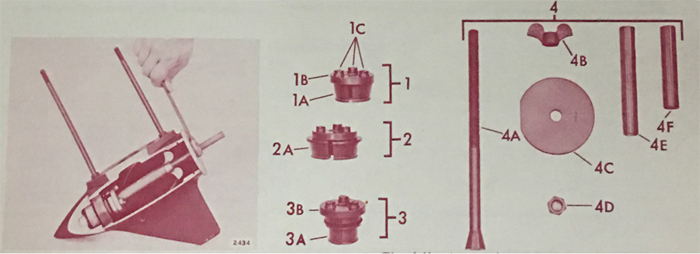

These parts shown below are also available in detail
as shown below:
ITEM |
PART NO. |
DESCRIPTION |
1 |
379829 |
Race Puller - 40
HP thru 1970 |
*2 |
379649 |
Race Puller
- (60 thru 90 HP thru 1968) |
*3 |
379784 |
Coil Puller - (all 40 HP 1970, 75 HP thru 1968) |
4 |
379843 |
Shaft and Sleeve Kit - Use with 3 pullers listed above |
|
|
|
*Also used on Stern Drive.
The following replacement parts are available
for service:
ITEM |
PART NO. |
DESCRIPTION |
1A |
309887 |
Jaw - (3 required) |
1B |
310948 |
Puller Head (used on all 3 pullers) |
1C |
309876 |
Shoulder Screw (used on all 3 pullers) |
2A |
310683 |
Jaw (3 required) |
3A |
310949 |
Jaw (3 required) |
3B |
202591 |
O-Ring (standard part -
order from your parts distributor) |
4A |
311006 |
Shaft |
4B |
311004 |
Wing Nut |
4C |
311005 |
Pressing Plate |
4D |
308332 |
Pressing Nut |
4E |
310934 |
Sleeve - 5" |
4F |
310682 |
Sleeve - 3-1/2" |
|
|
|
