Gearcase Front Bearing Race Installer

GEARCASE FRONT BEARING RACE INSTALLER
PART NO. 378449

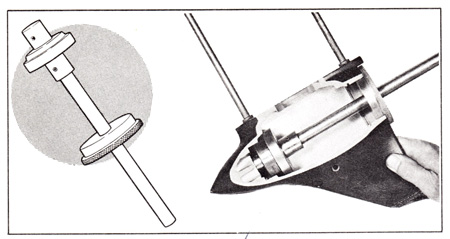

For 60 HP and 75 HP engines. Place front bearing race into housing. Insert tool into race and position guide. Drive race in with mallet until race is seated.

See Also; Remover 378450

Factory service bulletin: Johnson Service Bulletin SB-894 - illustrated instructions and specifications.

Factory order-form correction

SB-894 Supplement - Corrected tool order form

The supplement corrects the original order form: 378450 is the puller and 378449 is the installer. Number 378445 was printed in error.
