Gearcase Front Bearing Race Puller

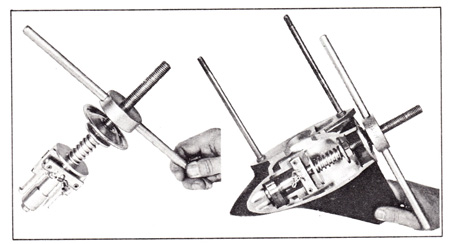

GEARCASE FRONT BEARING RACE PULLER For 60 HP and 75 HP engines. Disassemble gear housing completely. Slide puller into gear housing, until jaws engage under side of race, and tighten nut. Install guide plate and pull nut and turn pull nut until race is removed. See Also; Installer 378449 Replacement puller jaw set: 379241 |
 |
Factory service bulletin: Johnson Service Bulletin SB-894 - illustrated instructions and specifications.
Factory order-form correction
SB-894 Supplement - Corrected tool order form
The supplement corrects the original order form: 378450 is the puller and 378449 is the installer. Number 378445 was printed in error.
