Installer Set - Coil And Bearing

INSTALLER SET - COIL AND BEARING
PART NO. 384415

Used for installing front propeller shaft bearing
race and front coil assembly on 40, 75, 80, and 90 HP electric shift engines and on DU and NU
series stern drive.

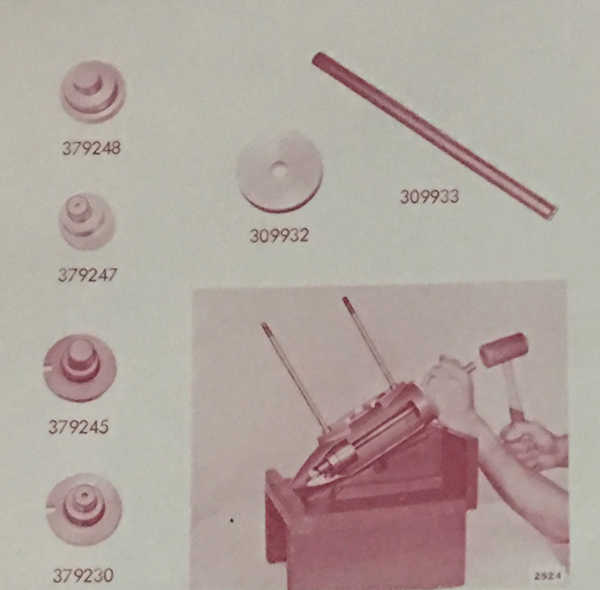

Parts also available in detail as listed below:

PART NO. 309933 Driver Shaft

PART NO. 309932 Guide Plate

PART NO. 379248 Bearing Race Installer
(60 THRU 90 hp thru 1968)
(all DU and NU series stern drive)

PART NO. 379247 Bearing Race Installer (40 hp)

PART NO. 379245 Front Coil Installer
(75, 80, 85, and 90 HP thru 1968)
(all DU and NU series stern drive)

PART NO. 379230 Front Coil Installer
(40 HP thru 1970)

Factory service bulletin reference

Johnson Service Bulletin SB-925 documents the original installer components for 40 and 75 HP electric-shift engines, including the shared guide plate 309932, driver shaft 309933, and four interchangeable driver heads 379230, 379245, 379247, and 379248.

When SB-925 was issued, Johnson stated that the complete group did not have a single ordering part number and that each component had to be ordered separately. Later tool listings identify the combined installer set as part number 384415, with additional engine and stern-drive applications.

The bulletin includes factory installation instructions and illustrations for the front propeller shaft bearing race and electro-magnet.
